热泵稻谷干燥机 Heat pump rice dryer
● 设备性能特点 Performance characteristics:
1、热泵回热干燥技术可获取空气中热能，耗电仅为其他干燥机的四分之一。
2、采用双级除湿技术，干燥效率高，相比燃煤、燃油、燃气干燥机，可节省费用75%。
3、干燥品质高，干谷损失率低，色泽好，稻谷维生素损失小，优于传统自然晾晒。
4、用电能作动力安全可靠，无易燃、易爆、中毒等危险，使用环境清洁，工人劳动强度低。
5、采用全自动控温系统，智能化程度高，可24小时连续干燥、无人作业。
6、性能稳定可靠，工艺技术成熟，设备使用寿命长，使用过程环保、无污染物及CO2排放。
7、安装维护便利，占地面积小，设备投入少，对收获季节属于潮湿、雨季的热带、亚热带地区尤为适用。
8、热泵机组一机两用，可作为冷源动力实现保鲜功能，用于干谷、小麦或其他农产品冷藏储存，可有效防止稻谷发生霉变。
● 设备工作流程 Equipment workflow：
● 产品参数 Product parameters:
|
型号Model |
湿稻谷干燥量Drying capacity (t/ batch) |
干燥温度Drying temp.℃ |
失水速度 Water loss rate(% / h) |
装机容量Installed capacity，kW |
外形尺寸Dimensions (L* W * H, m) |
|
DGJ-2 |
2吨/批 |
30~55 |
0.6~1.2% |
20 |
3.5*3.0*5.5 |
|
DGJ-6 |
6吨/批 |
30~55 |
0.6~1.2% |
23 |
4.0*3.5*7.5 |
|
DGJ-10 |
10吨/批 |
30~55 |
0.6~1.5% |
53 |
6.3*3.5*9.25 |
|

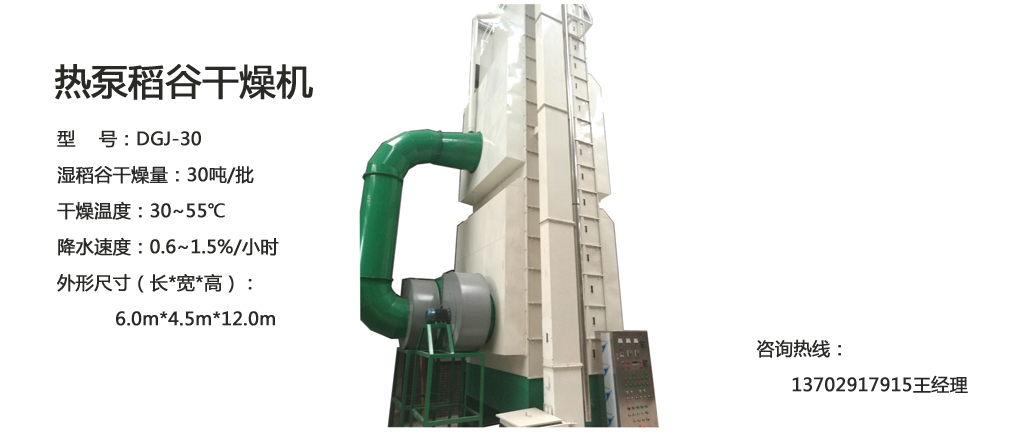

DGJ-30 |
30吨/批 |
30~55 |
0.6~1.5% |
70 |
6.0*4.5*12.0 |
● Performance characteristics:
1. The equipment is highly efficient, energy-saving, environmentally friendly, and has one machine for both drying and fresh-keeping. The purchase of the machine can get China's national purchase subsidy.
2. Heat pump reheat drying technology can obtain heat energy in the air, and the power consumption is only a quarter of other dryers.
3. It adopts two-stage dehumidification technology, which has high drying efficiency. Compared with coal-fired, oil-fired and gas-fired dryers, it can save costs by 75%.
4. High drying quality, low grain loss rate, good color, and small vitamin loss in rice, which is better than traditional natural drying.
5. It is safe and reliable to use electric power as power, without flammable, explosive, poisoning and other dangers. The use environment is clean and the labor intensity of workers is low.
6. The automatic temperature control system is adopted, which has a high degree of intelligence and can be continuously dried for 24 hours without any operation.
7. Stable and reliable performance, mature process technology, long service life of the equipment, environmental protection during use, no pollution and CO2 emissions.
8. Convenient installation and maintenance, small floor area, and low equipment investment, especially suitable for tropical and subtropical areas where the harvest season is humid and rainy.
9. The heat pump unit can be used for one machine and two purposes, as a cold source power to achieve freshness preservation function, used for cold storage of dry grain, wheat or other agricultural products.
